Introducing the ECOFARIO High-G-Separator to the Fluid Processing Industry


Fields of Application

The ECOFARIO system is fully adjustable to volume flow capacities and consistencies. Fields of application include microplastics elimination, fiber-loss reduction, fine reject optimization, sticky and wax removal, desanding, dirt speck reduction, oil removal, desalination, and expulsion of paint residues,….

Efficiency

A single High-G-Separator reaches unprecedented filtration efficiencies in a single cycle. By individually adjusting flows and reject rates, the highest potential separation performance can be achieved with the lowest possible amount of energy, materials, and wear.

Adapted to your needs

ECOFARIO’s pilot plant is fully mobile. It is in continuous operation in different fields of application to verify the potential of the technology for future customer plants. Depending on the needed capacity the system is fully adaptable to various fluid cycles.

AVAILABLE SIZES

High-G // 2”

  • Capacity: 25 - 40 m³/h

  • Solids Content: < 2 %

High-G // 1”

  • Capacity: 6 - 10 m³/h

  • Solids Content: < 1 %


Two ECOFARIO High-G Separators shown in different sizes, against a white background.

EXAMPLE

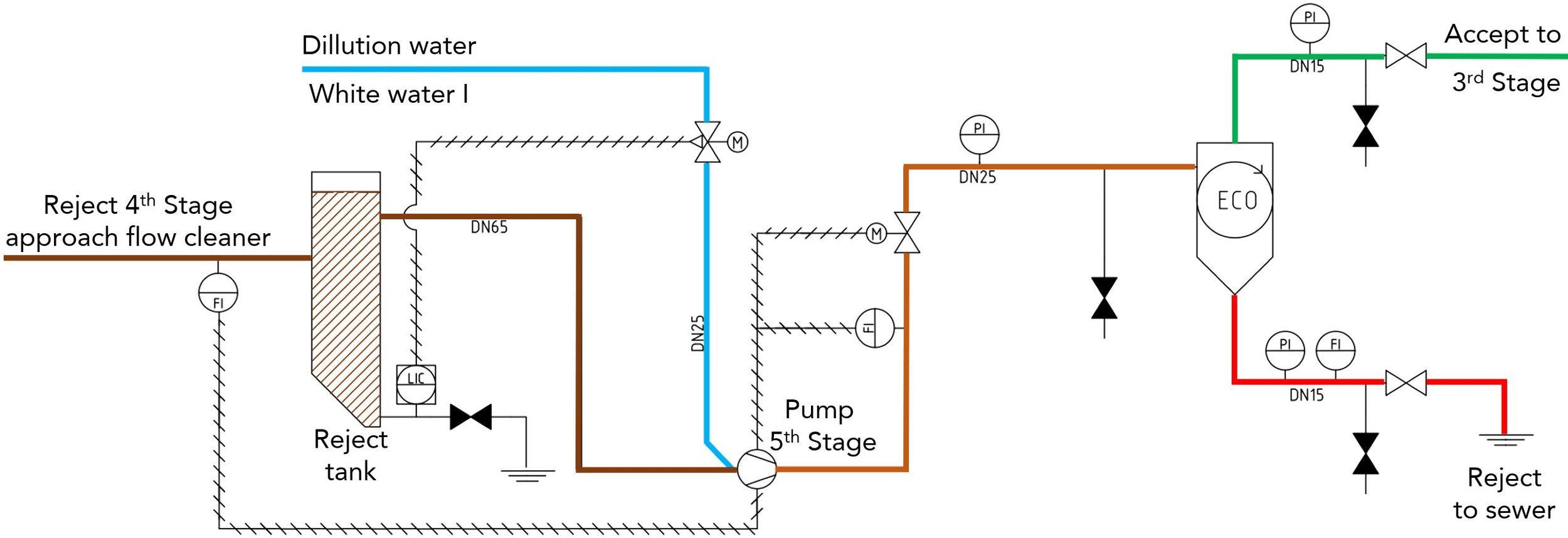

Installation in the approach flow of a paper mill

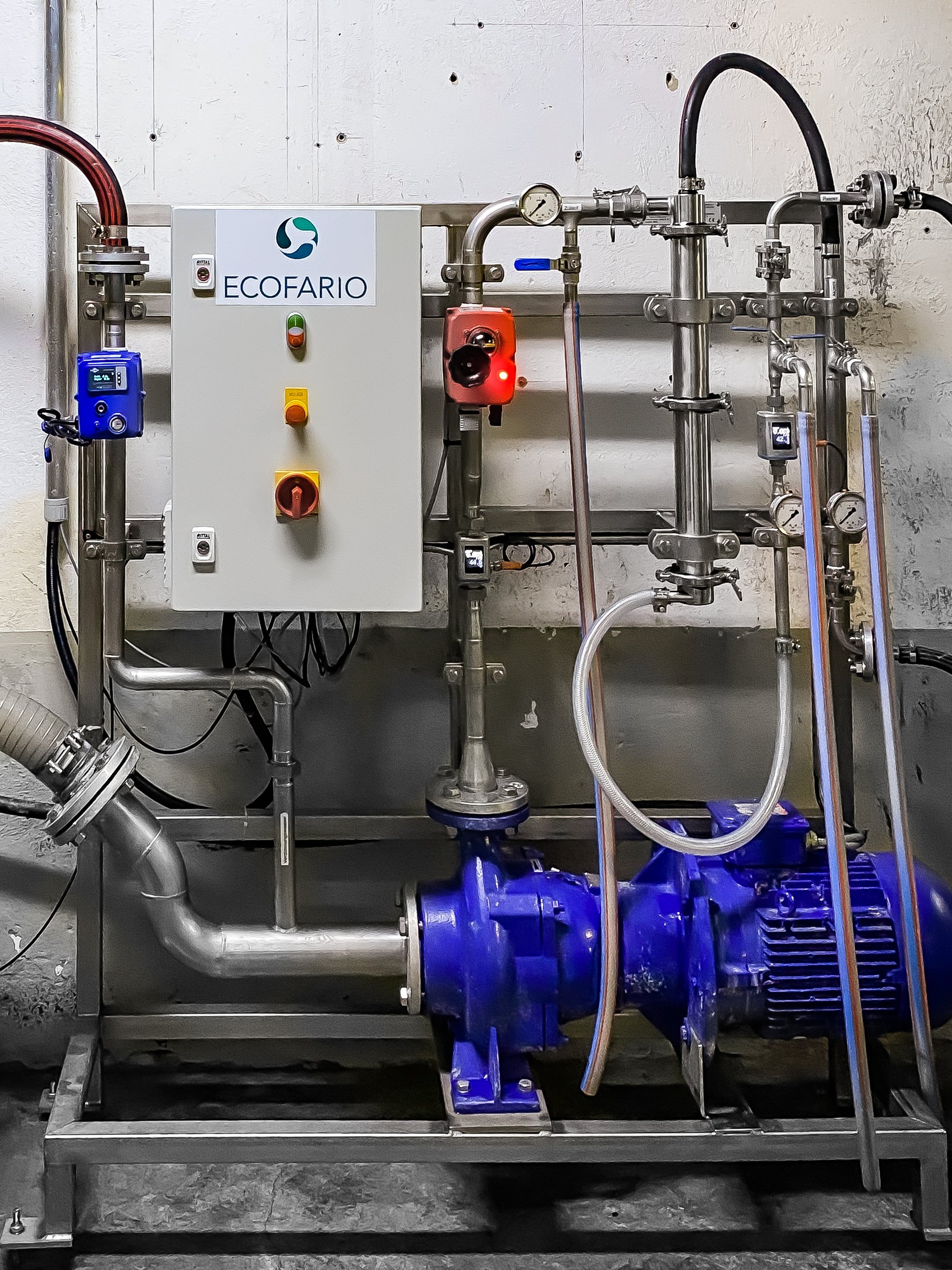

ECOFARIO High-G-Separator at paper mill

This 1” ECOFARIO High-G-Separator fiber recovery unit is installed as a tail-stage of an up-to-date approach flow cleaner system. The installation reduces fiber losses by more than 80 %, offering a very attractive ROI.

ECOFARIO Detail of High-G-Separator

RESULTS

High dirt spec removal performance

High-G // 1”

  • as 5th stage approach flow cleaner

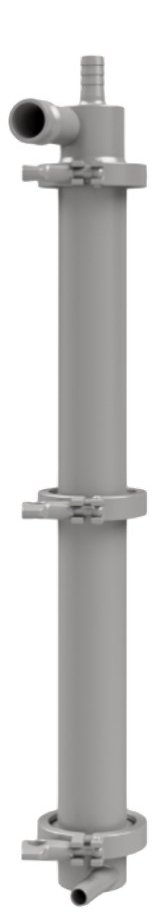

ECOFARIO High-G 1""

diagonal black arrow pointing down right on white background
Black diagonal arrow pointing upwards and to the right on a white background.

Bar graph illustrating relative fiber mass-flow percentages for Inlet, Accept, and Reject categories.
Bar chart showing relative ash mass-flow with three bars labeled Inlet, Accept, and Reject. The Inlet bar is at 100%, the Accept bar is at 58.7% with error bars, and the Reject bar is at 33.5% with error bars. "n=12" is indicated on the Inlet bar.
Diagonal black arrow pointing downwards to the right on a white background.
Diagonal black arrow pointing upward right
Bar chart titled "Recovery Rates (abs.)" showing percentages for Total, Fiber, and Ash with error bars. Total: 78.9%, n=30; Fiber: 81.9%, n=12; Ash: 59.9%, n=12.

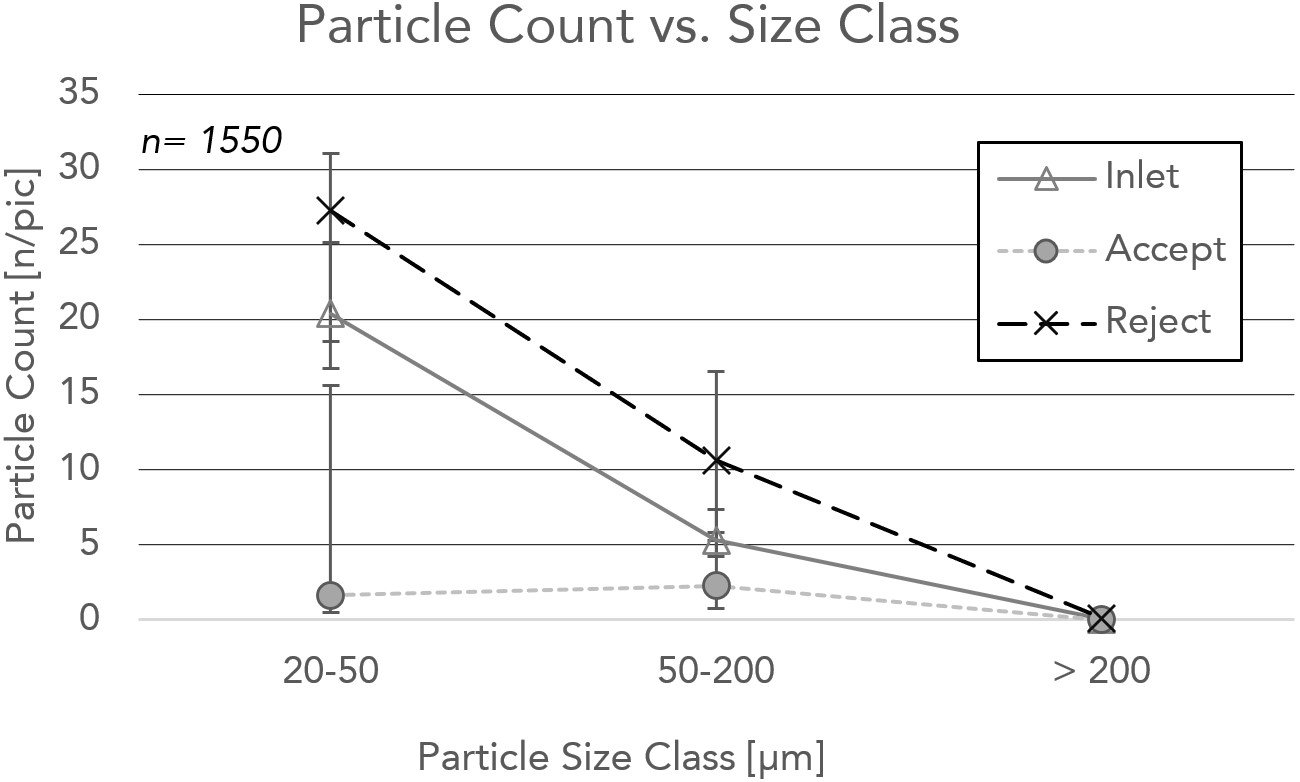

Online transmittance dirt speck analysis

Our mission is sustainable process optimization

“Our mission is sustainable process optimization.”
